M-E-L Generator 50 AMP Bosch

[59lincolnrag]

Hello all,

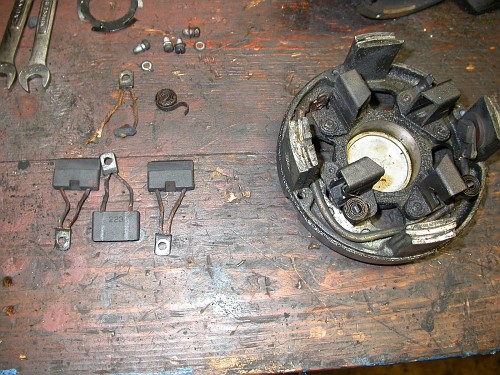

Im looking for any information on a Generator, 50 AMP Bosch unit. I need brushes and springs.
This unit came as factory equipment on Air conditioned cars.
Ford part number 2702152
Generator GRC 1250-B-402-22
15 volts 50 AMPS

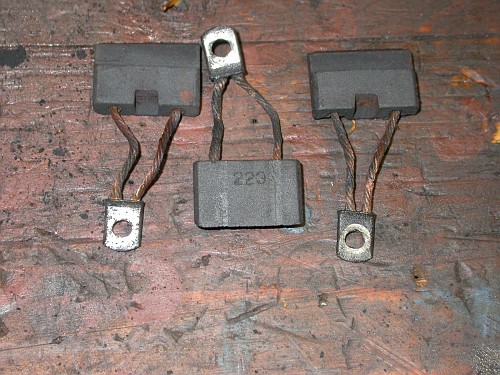

Brush Measures
1.100 in w
.314 in thick
steps down to .210 in thick
1.125 length when new
springs are 16 -18 oz.





Thank you
Anthony

[Shelby#18]

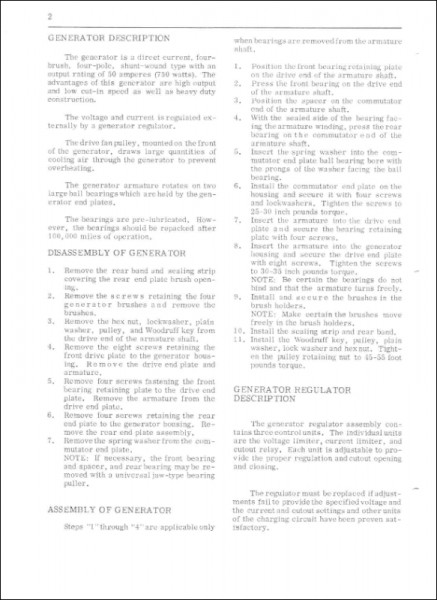

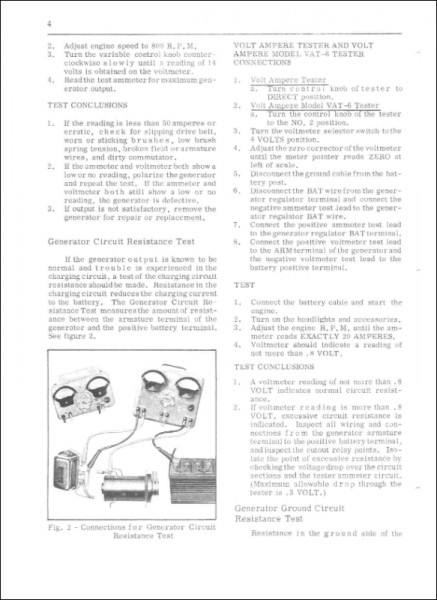

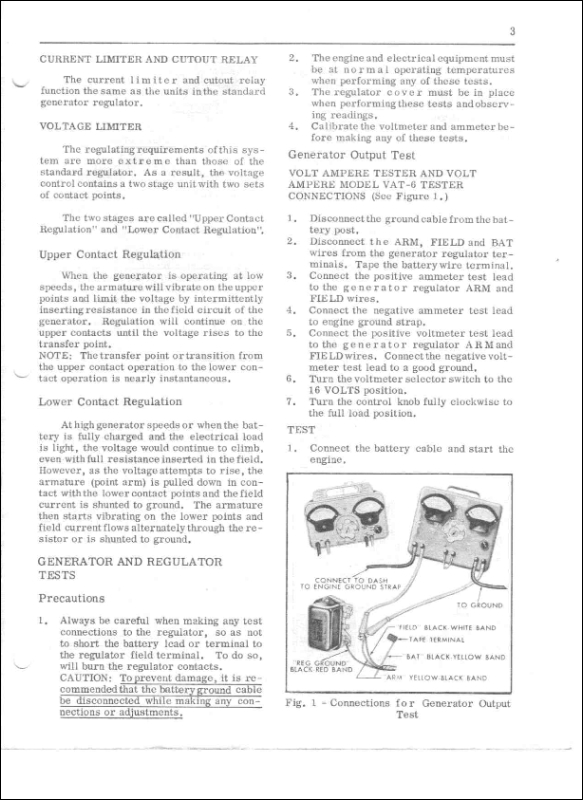

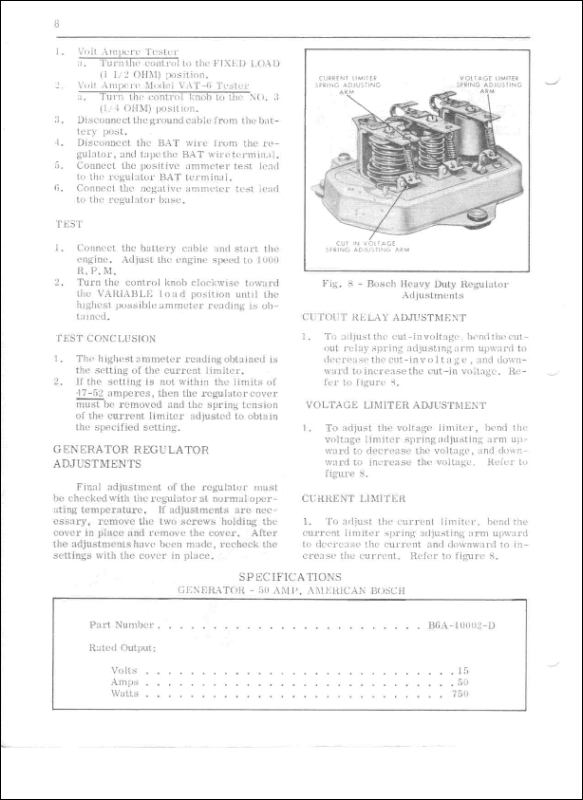

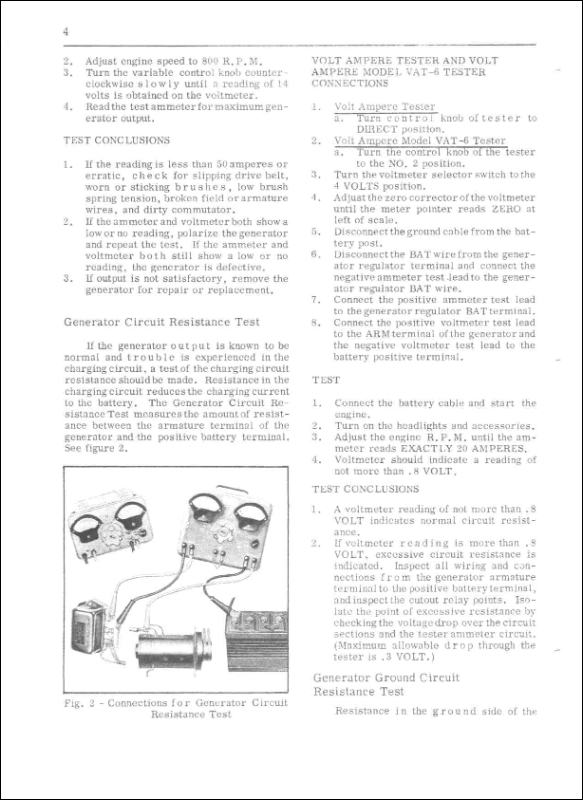

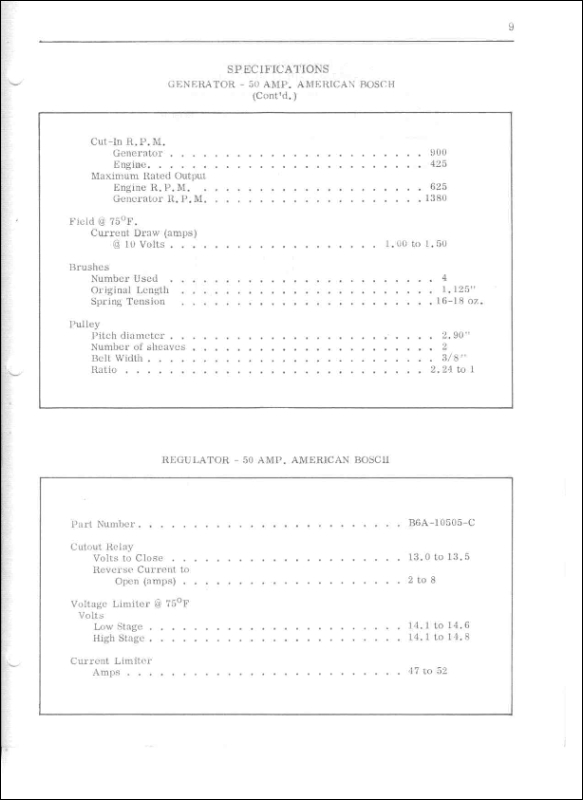

I hope this helps!

All the best....
Rick

[59lincolnrag]

Thank you Rick .....That is very helpful .....
I found replacement bearings ...still looking for brushes and springs.
Cut the armature on the lathe .....just a whisker......so the armature assembly is ready to go.....
Will post results soon....
Thanks
Anthony

[pinesd3400]

Strangely my Cont. came with a 60A Delco system? Whats up with that. Its listed in my parts book.
I recently installed a 100 A one wire alternator totally awesome.

[59lincolnrag]

Yes I have seen those as well ....Two of my Lincolns with factory air have the BOSH system....?

[430 6V]

From what I know that Delco external ground system was a one year only in '60.

My '60 has one and I think an alternator and brackets from one of my 462's is going in.
