Pan Gasket Identification Ford, Lincoln, Mercury, Edsel

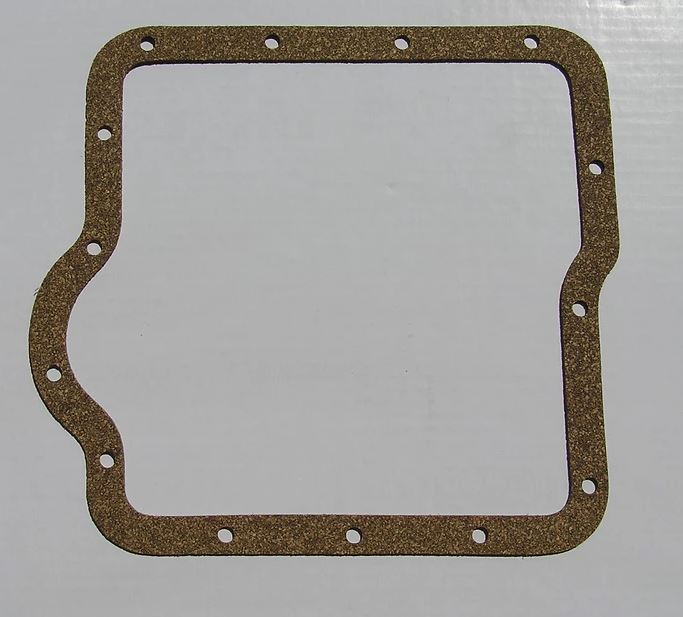

- Fordomatic 2 speed 14 Bolts 1959 to 1964

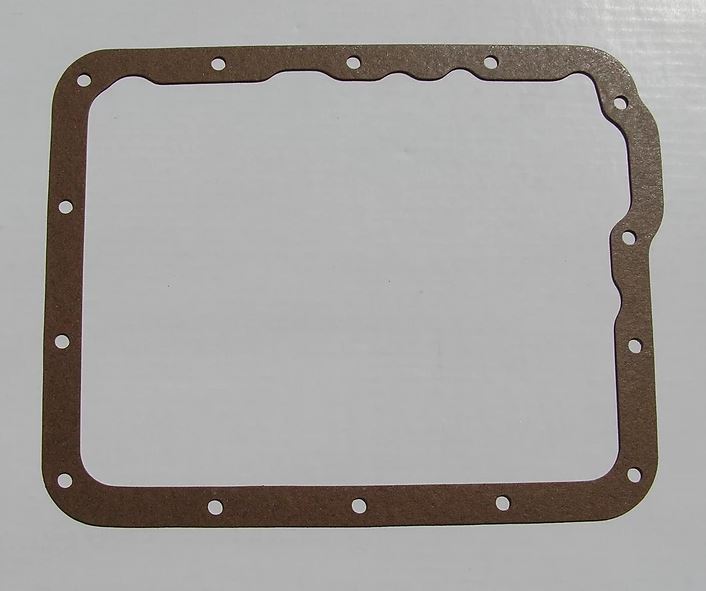

- Small Case FMX 14 Bolts 1951 on

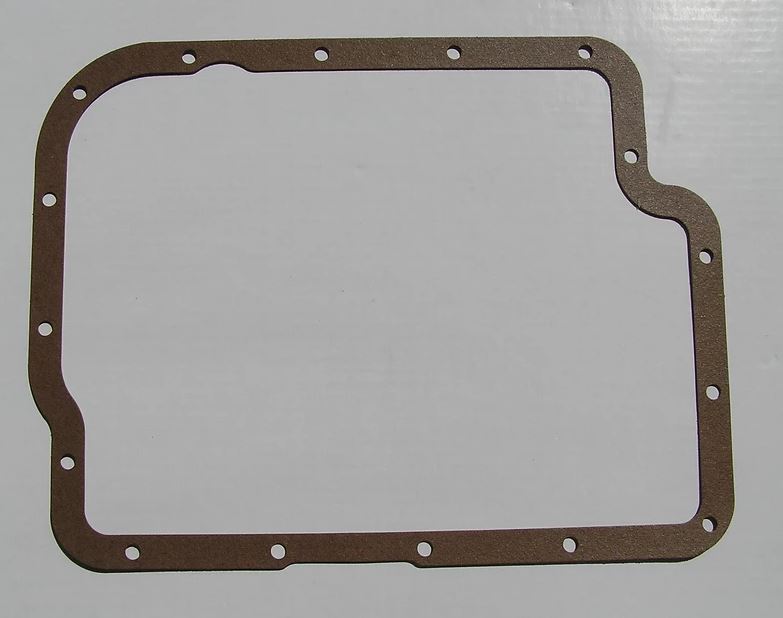

- Medium Case 14 Bolts 1955 on

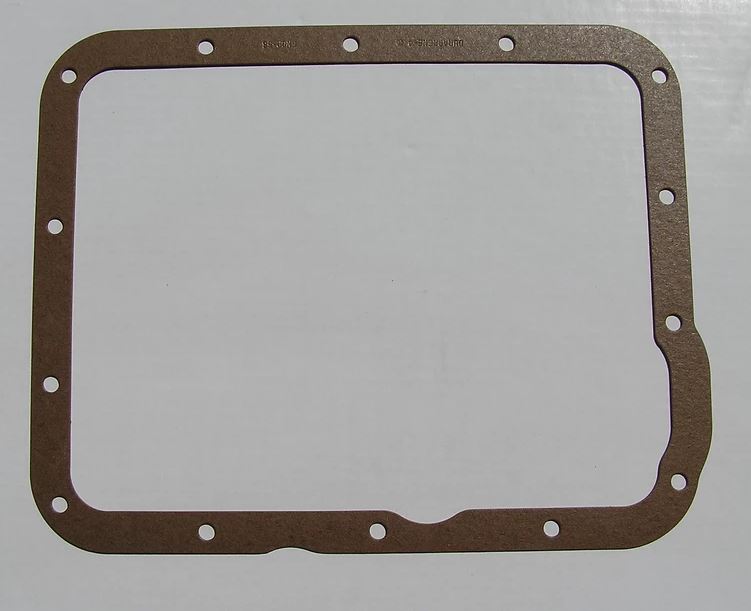

- Large Case 14 Bolts 1958 to 1960
- Large Case 14 Bolts 1958 to 1960

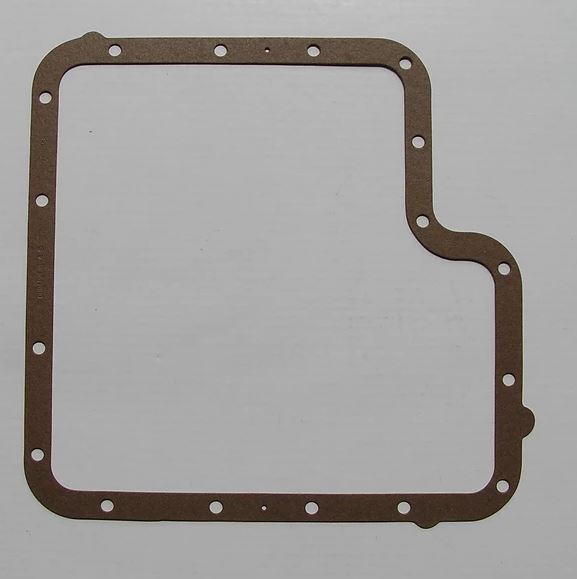

- C6 17 Bolts 1966 on
INDEX BY VEHICLE
Comet
(1960-1964) Fordomatic
1964-1980) C4
Edsel
(1958-1960 w/410 engine) Large Case
(1959-1960) Fordomatic
Ford
(1951-1967) Small Case
(1955-1972) Medium Case
(1958-1961) Large Case
(1959-1964) Fordomatic
(1968-1981) FMX
(1964-1980) C4
(1966-On) C6
Lincoln
(1949-1954) Hydramatic
(1955-1961) Medium Case
(1958-1965 w/430 engine) Large Case
(1966-1979) C6
Mercury
(1951-1967) Small Case
(1955-1972) Medium Case
(1958-1960) Large Case
(1968-1972) FMX
(1964-On) C4
(1966-On) C6
Thunderbird
Small Case
Medium Case
(1958-1960 w/430 engine) Large Case
Cast Iron Ford Case Identification
Cast Iron Ford transmissions can be identified by the letter code on the tag which is located on the side of the transmission case. The codes shown below reference the letter codes from the case.

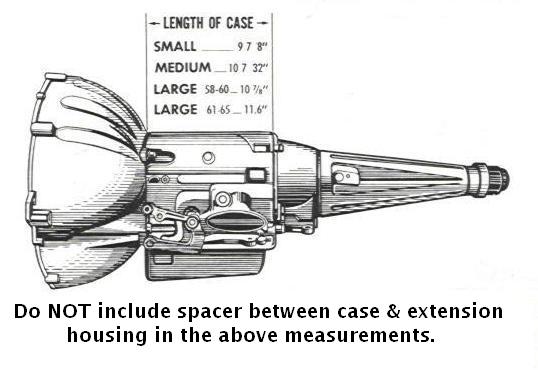

Cases can also be identified by the case measurement from front to back, not including the bell housing or rear pump section.
SMALL CASE = 9 7/8" Case Length (1951-1970)
IP - 1951-1954 Ford, Mercury 215, 223, 239, 255
PAD - 1953-1954 F100 215, 223, 239
PAE - 1954 Mercury 256
PAG - 1955 Ford 223
PAH - 1955 F100 223, 239
PAJ - 1955 F250, F350 223,239
PAK - 1955 Ford 272
PAP - 1956 Ford 223
PAR - 1956 Ford 272, 292, 312
PAS - 1956 F100 223
PAT - 1956 F100 272
PAU - 1956-1962 F250, F350, P350, P500 223
PAV - 1956-1958 F250, F350, P400, P500 272
PAY - 1957-1962 Ford 223
PAZ - 1957-1960 Ford, Edsel 272, 292, 312, 332
PBC - 1957-1962 F100, F250 223
PBD - 1957-1958 F100, F250 272
PBM - 1958-1961 Ford, Mercury 312, 332, 352
PBW - 1958-1962 F100, F250 292
PBY - 1958-1962 F350, P350, P500 292
PCC - 1961-1962 Ford, Mercury 292
PCD - 1961-1962 Ford, Mercury 352
PCT - 1963-1966 Ford, Mercury 260, 289
PMA - F250, P350 215, 223, 239
MEDIUM CASE = 10 1/4" (1955-1972)
PAN - 1956-1957 Lincoln, Mercury 368
PAW - 1956 Ford, Mercury 312
PBA - 1957 Ford, Mercury 312
PBL - 1958-1960 Ford, Mercury, Edsel 352, 361, 383
PCE - 1961-1962 Ford, Mercury 390
PMB - 1955 Ford, Mercury 292
PMC - 1955 Lincoln 341
PME - 1956 Ford 312
LARGE CASE = 10 7/8" (1958-1960)
LARGE CASE = 11 5/8" (1961-1965)
PBB - 1958-1960 Ford, Mercury, Lincoln 383, 410, 430
PCA - 1961-1965 Lincoln 430
FMX = 9 7/8" (1968-1981)
FMX units are very similar to a Small Case, but they are not the same.
FMX units do not have a rear pump, and the filler tube goes into
the case (not the oil pan).
- Cruise O Matic Identification
What type of transmission fluid I can use?
Check with the vehicle manufacturer or owner’s manual for the correct fluid type.
Type A Suffix A was the original fluid factory fill. Dextron III/ Mercon is used as its replacement.
TYPE "F" became available in 1967.
Now TYPE "A", it's replacement TYPE "A" SUFFIX "A" and it's replacement DEXRON III / Mercon cannot be used in a TYPE "F" specific transmission as the clutch materials will slip leading to failure. But TYPE "F" can be used in a DEXRON III/ Mercon application and it will give a more firm shift. Due to the lack of friction modifiers in type F.
If you are working on a Ford, Mercury, or Lincoln and the transmission has the original bronze type friction plates, then Type F should be used.
DO NOT introduce any "A"/DEXRON III/MERCON into a TYPE "F" only trans. It does not contain the friction modifiers the friction materials need and will result in slippage.
IN VEHICLE ADJUSTMENTS
CAST IRON FORD
FRONT BAND ADJUSTMENT
1. With the transmission oil pan removed, back off the adjusting screw lock nut and
adjusting screw far enough to insert a ¼” wide metal block in between the servo piston
rod and the adjusting screw.
2. Turn the screw until it contacts the metal block. Then tighten screw a little more too
about 10 inch pounds and back off one turn.
3. While holding the adjustment screw in position, tighten the lock nut down to 20-25 foot
pounds.
REAR BAND ADJUSTMENT
1. Loosen the lock nut and tighten the adjusting screw to 10 foot pounds.
2. Back of the adjusting screw 1 ½ turns and tighten the lock nut to a torque of 35-40 foot
pounds.
Note, 1961-1965 Lincoln transmissions use external band adjustments.
FORDOMATIC FM2
FRONT BAND ADJUSTMENT
1. The low band adjusting screw is located through the front left side of the
case. Loosen the lock nut several turns and then tighten the adjusting bolt
down to 10 inch pounds.
2. Back off the adjusting bolt 2 full turns and then tighten the lock nut to a
torque of 40 foot pounds.
REAR BAND ADJUSTMENT
1. Remove the transmission oil pan and locate the rear servo adjusting rod.
2. Loosen the lock nut and adjusting nut and insert a ¼” wide spacer (wrench
works well) between the adjusting nut and the rod seat (half ball).
3. While holding the adjusting rod stationary (use the flat area on the rod), and
with the ¼” spacer inserted, tighten the adjusting nut to 45-50 inch pounds.
4. Back off the adjusting nut two full turns and tighten the lock nut against it to
15-18 foot pounds. Use caution not to let the adjusting nut rotate while
tightening the lock nut.
FORD FMX BAND ADJUSTMENT
The front band is adjusted internally.
1. Loosen lock nut on the adjuster.
2. Insert a 1/4" spacer between the servo and adjuster screw.
3. Torque the adjuster screw to 10" (inch) lbs. Remove the spacer.
4. The adjuster is then tightened an additional 1 full turn.
5. Tighten lock nut.
The rear band is adjusted externally.
1. Loosen the lock nut.
2. Torque adjuster screw to 10'(foot) lbs. Back adjuster off 1 1/2 turns.
3. Tighten lock nut.
FORD C4 BAND ADJUSTMENT
INTERMEDIATE BAND ADJUSTMENT.
1. Loosen the lock nut.
2.Tighten the band adjustment screw to 10 ft-lbs. Then back off 1 3/4 turns.
3.Tighten the locknut to 40 ft-lbs. Use caution not to let the adjusting nut rotate while tightening the lock nut.
REVERSE BAND ADJUSTMENT.
1.Loosen the lock nut.
2.Tighten the band adjustment screw to 10 ft-lbs. Then back off 3 full turns.
3.Tighten the locknut to 40 ft-lbs. Use caution not to let the adjusting nut rotate while tightening the lock nut.
FORD C6 BAND ADJUSTMENT
1. Loosenthe lock nut.
2. Tighten the adjusting screw to 14 N-m (10 lb-ft).
3.Back off the adjusting screw exactly 1-1/2 turns.
4.Hold the adjusting screw from turning and tighten the lock nut to 35-45 lb-ft. Use caution not to let the adjusting nut rotate while tightening the lock nut.
Ford recommends replacing the lock nut.
Source(s):
OEM Ford Shop Manual
